Buying a solid state HF welder is one of the largest capital investments you will make for your tube and pipe mill. Get the sizing right, and your line runs at peak speed with minimal scrap. Get it wrong, and you will fight weld defects, high scrap rates, and wasted electricity for years.
Undersizing a welder limits your production speed. The mill cannot deliver enough thermal energy to the strip edges, causing cold welds, paste welds, and structural failure during flaring tests. Conversely, oversizing creates a high upfront cost and runs the power supply at poor efficiency points. If you choose the wrong frequency, you risk burning the tube surface, creating an excessively wide heat-affected zone (HAZ), or failing to heat the inner wall.
Bigger is not better. Precise matching is the only path to high-speed stability and low operating costs. At SANSO, our engineers focus on matching high frequency welding equipment to specific mechanical and metallurgical boundaries. This four-step engineering framework explains how to calculate power (kW) and select frequency (kHz) for your tube production line.

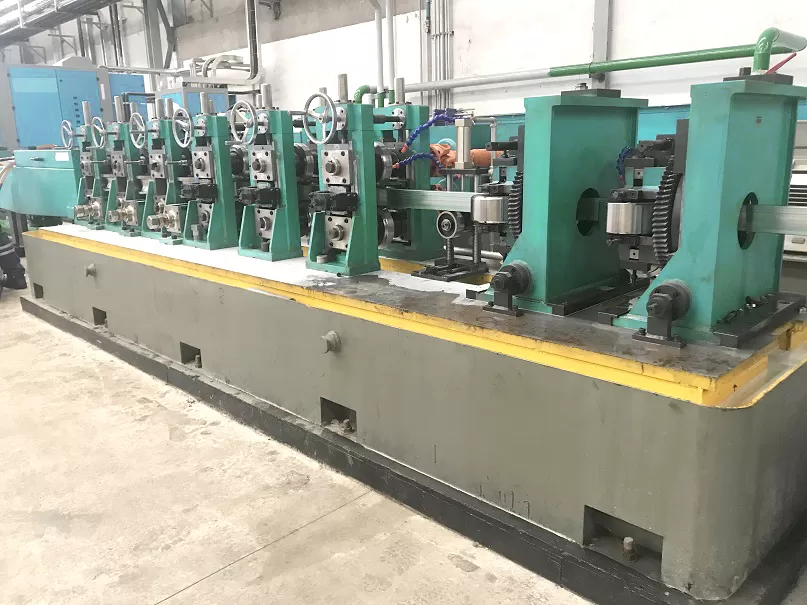

Before touching a power calculation formula, you must establish the physical envelope of your tube mill. Every alloy responds differently to high frequency electromagnetic fields.
Wall thickness (WT) dictates the depth of heat penetration required to forge a solid bond. Thicker walls demand deeper thermal conduction before the squeeze rolls apply pressure. The outside diameter determines the mechanical "V" angle formed as the open seam approaches the weld point. A larger diameter changes the inductor coil clearance and the total electrical impedance of the mill Vee.
The choice of metal directly alters the power transfer efficiency from the induction coil to the open tube:
Carbon Steel (Low to Medium Carbon): Highly magnetic below the Curie point (around 770°C). It offers high magnetic permeability and high electrical resistance, making it the easiest material to heat efficiently with a solid state high frequency welder.
High-Strength Low-Alloy (HSLA) & Advanced High-Strength Steels (AHSS): These alloys feature specialized chemistries that alter electrical resistivity and require tight thermal control to prevent brittle microstructures in the HAZ.
Austenitic Stainless Steel (300 Series): Non-magnetic and possesses high electrical resistivity. Stainless requires distinct frequency profiles to prevent chromium carbide precipitation and preserve corrosion resistance.
Non-Ferrous Alloys (Copper, Aluminum): Highly conductive with no magnetic properties. Non-ferrous materials reject magnetic flux and require up to two to three times more power than carbon steel to reach forge-welding temperatures.
Calculating the required kilowatt (kW) rating depends on the mass of metal passing through the weld point per minute. You must calculate the energy needed to bring the strip edges from ambient temperature to the forge-welding point (roughly 1350°C to 1420°C for carbon steel).
In high frequency tube manufacturing, engineers use an empirical power estimation formula:
P = K × W × T × S
Where:
P: Required High Frequency Power (kW)
K: Material Power Factor (an empirical constant accounting for material thermal properties and electrical characteristics)
W: Width of the heated edge zone (typically proportional to wall thickness)
T: Tube Wall Thickness (mm or inches)
S: Line Speed (meters/minute or feet/minute)
For standard carbon steel induction welding, typical K factors range between 0.018 and 0.024 (metric system), depending on mill layout and impeder efficiency. Non-ferrous metals like aluminum require K factors upwards of 0.045 to 0.060.
The following table provides baseline power recommendations for standard carbon steel tube manufacturing using induction welding methods:
| Outside Diameter (OD) | Wall Thickness (WT) | Target Line Speed | Recommended Power (kW) | Welding Method |
|---|---|---|---|---|
| 12.7 mm – 25.4 mm (1/2" – 1") | 0.8 mm – 1.5 mm | 120 m/min | 100 kW – 150 kW | Induction |
| 25.4 mm – 60.3 mm (1" – 2 3/8") | 1.5 mm – 3.2 mm | 90 m/min | 200 kW – 300 kW | Induction |
| 60.3 mm – 114.3 mm (2 3/8" – 4 1/2") | 2.5 mm – 6.0 mm | 60 m/min | 350 kW – 500 kW | Induction / Contact |
| 114.3 mm – 219.1 mm (4 1/2" – 8 5/8") | 4.0 mm – 9.5 mm | 40 m/min | 500 kW – 800 kW | Induction / Contact |
| 219.1 mm – 508.0 mm (8 5/8" – 20") | 6.0 mm – 16.0 mm | 25 m/min | 800 kW – 1200 kW+ | Contact Preferred |
Your choice of process affects power requirements. Induction welding uses a coil that does not touch the pipe. It offers zero mechanical wear and zero surface marking, but it introduces an air gap that results in an efficiency loss of roughly 25% to 30%. Contact welding transmits current directly through contact tips resting on the tube. It delivers higher electrical efficiency on thick-wall, large-diameter pipes (over 6.0 mm WT), but requires frequent replacement of wearable contact shoes.
Frequency determines how deep the electrical current penetrates the steel. Selecting the right frequency balances heat penetration against scrap generation and power waste.
High-frequency current does not travel evenly through a conductor. The Skin Effect forces the alternating current to flow primarily along the outer surface. The depth at which current density drops to roughly 37% of its surface value is called the Skin Depth (δ):
δ = 503 × √(ρ / (μ × f))
Where ρ is electrical resistivity, μ is relative magnetic permeability, and f is the operating frequency in Hertz. As frequency increases, the skin depth decreases. Simultaneously, the Proximity Effect pulls the current toward the opposing strip edges of the open seam, concentrating heat right at the welding interface.
Different production profiles require specific frequency ranges:
100 kHz to 200 kHz (Low HF Range): Ideal for heavy-wall carbon steel structural pipe (WT > 8 mm) and large API casing. Low frequencies yield deep heat penetration. This prevents outer corner burn-off while ensuring the inner wall reaches forging temperature.
250 kHz to 350 kHz (Standard Medium Range): The sweet spot for automotive tubing, mechanical pipe, and general manufacturing with wall thicknesses between 1.5 mm and 6.0 mm.
400 kHz to 600 kHz (High HF Range): Essential for small-diameter thin-wall tubes (WT < 1.0 mm), precision instrumentation tubes, and non-ferrous alloys. High frequency keeps the heat concentrated in a very narrow band, preventing strip edge collapse and minimizing internal weld bead height.
No induction welding frequency selection works without an impeder. Positioned inside the tube beneath the weld area, the ferrite impeder increases the magnetic impedance of the inside path. It prevents high-frequency current from circulating harmlessly around the inside circumference of the pipe. A well-cooled, high-performance impeder redirects the current directly into the weld Vee, boosting system efficiency by up to 40%.

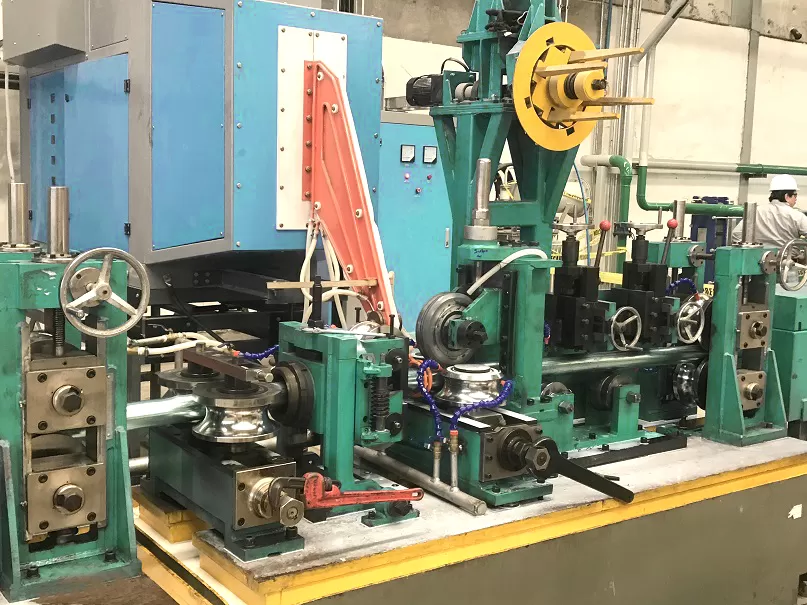

A solid state HF welder does not exist in isolation. It relies on a balanced ecosystem of power electronics, transmission lines, and cooling loops to maintain stability.
Power generated inside the inverter cabinet must reach the tube seam with minimal drop. Long busbar runs between the matching transformer and the weld coil introduce parasitic inductance and resistance. Keep busbars as short and as parallel as possible. Inductor coils must be carefully designed to match the tube outside diameter, maintaining a clearance gap between 2 mm and 4 mm for maximum magnetic coupling without risking arc discharge.
Modern equipment, including SANSO solid state high frequency welders, uses MOSFET or IGBT solid-state switching modules. MOSFET units operate efficiently at frequencies up to 600 kHz with fast switching characteristics, making them suitable for small-to-medium pipe mills. Modern IGBT systems excel at ultra-high power outputs (up to 1200 kW) in lower frequency brackets (100–250 kHz), offering durability in heavy-gauge structural mills.
High-frequency welders generate heat inside the power cabinets, transformers, output leads, and induction coils. A dedicated, closed-loop deionized water cooling system is essential. If water temperature rises above 40°C, or if mineral deposits accumulate inside the solid-state power modules, thermal throttling occurs. This forces operators to drop the line speed to prevent inverter trips.
Never size your solid state welder for 100% capacity during standard runs. Always add a 15% to 20% safety margin. This buffer accounts for variations in steel coil chemistries (such as trace silicon or manganese shifts), local power grid voltage drops, coil geometry wear, and future mill speed increases.
Q1: What is the main difference between MOSFET and IGBT solid state
HF welders?
A1: MOSFET welders excel at high
switching speeds and higher frequencies (up to 600 kHz), which makes them ideal
for thin-wall and small-to-medium tube applications. IGBT welders excel at
carrying massive current loads at lower frequencies (100–250 kHz), making them
suitable for thick-wall structural pipes and large API pipelines.
Q2: Can I weld stainless steel tube using the same frequency as
carbon steel?
A2: Stainless steel is non-magnetic
and possesses higher electrical resistance than carbon steel at room
temperature. It typically requires higher operating frequencies (400 kHz to 500
kHz) and a narrower heat-affected zone (HAZ) to prevent loss of corrosion
resistance and minimize thermal distortion.
Q3: How does the "V" angle affect power consumption on a tube
mill?
A3: The optimal "V" angle is typically
between 3 and 7 degrees. If the angle is too wide, electrical impedance
increases, requiring higher power to drive the current to the apex. If the angle
is too narrow, premature arcing and instability occur, causing cold-weld
defects.
Q4: Why does my solid state welder consume more power when the
impeder degrades?
A4: When the ferrite core inside
the impeder overheats past its Curie point (typically above 200°C), it loses its
magnetic properties. High-frequency current then diverts around the internal
diameter of the tube instead of concentrating at the seam edges, forcing the
welder to deliver more raw power to maintain seam temperature.
Q5: How do I know if my tube mill is running at the wrong
frequency?
A5: If your frequency is too high for
thick-wall tube, the outer corners will melt and spit while the inner seam
remains cold (unfused). If the frequency is too low for thin-wall tube, the
heat-affected zone becomes too wide, causing edge buckling, severe roll marking,
and large internal weld beads.
Matching a solid state HF welder to your tube mill requires balancing wall thickness, material chemistry, line speed, and frequency penetration. Sizing your system correctly guarantees low scrap rates, stable heat profiles, and lower electric utility bills.
SANSO designs and manufactures high-performance solid state high frequency welders built around stable power electronics and reliable thermal cooling. Our technical team works directly with tube and pipe manufacturers worldwide to calculate line requirements and specify dependable equipment.
Ready to optimize your tube mill performance? Contact our engineering team today to receive a complete power calculation and a custom sizing proposal for your production line.
