The forming fundamental of tube mill: the slit strip is formed into approximate round steel tube without welding by the forming mill,and then the tube’s edge is melted and welded by the HF induction welder and the welded seam is squeezed Immediately after welding at welding section of tube mill .At this stage, the steel pipe welding is completed, the welded tube through cooling and sizing mill and straightening stand, the final precision steel round or square&rectangular tube is done.

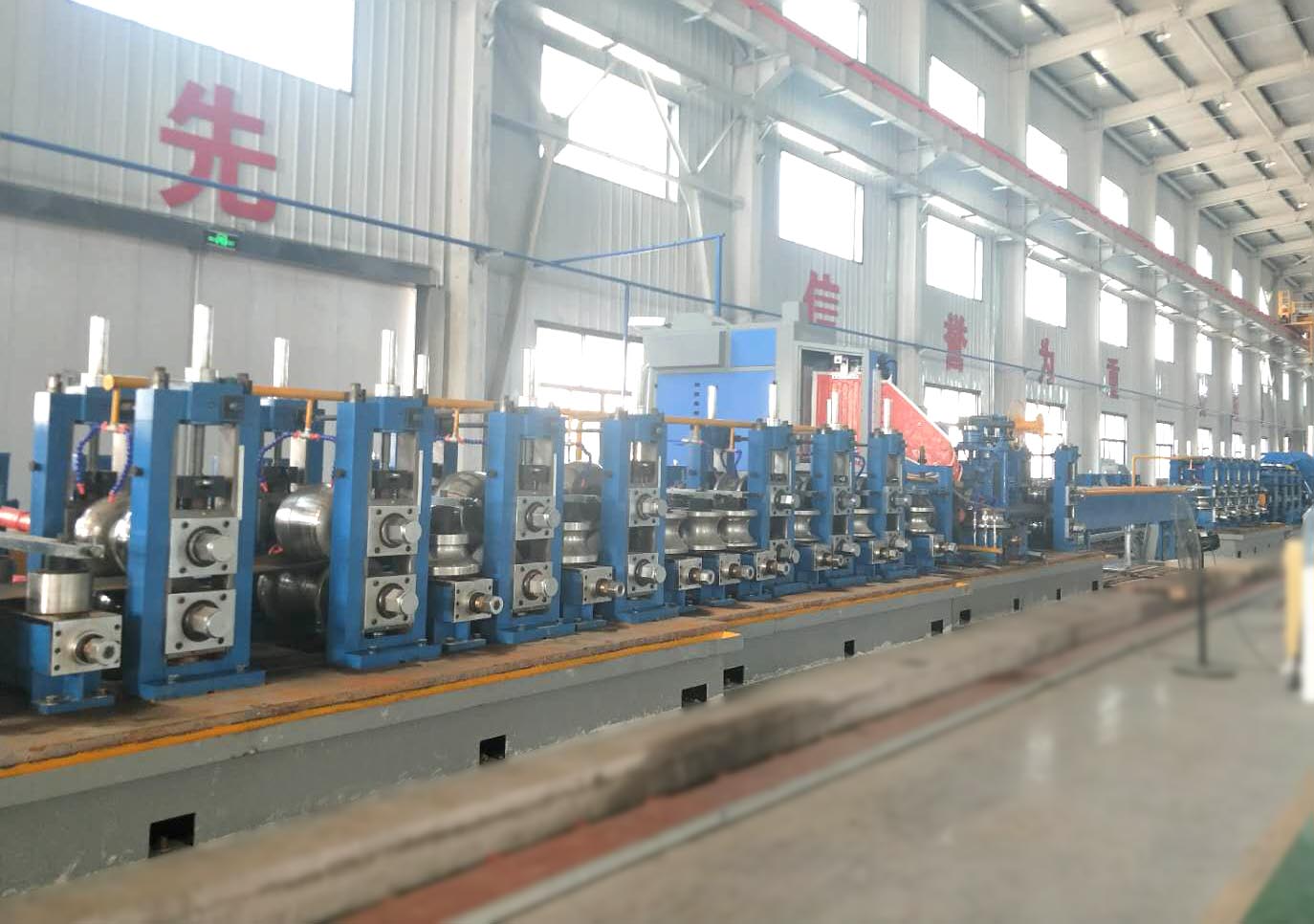

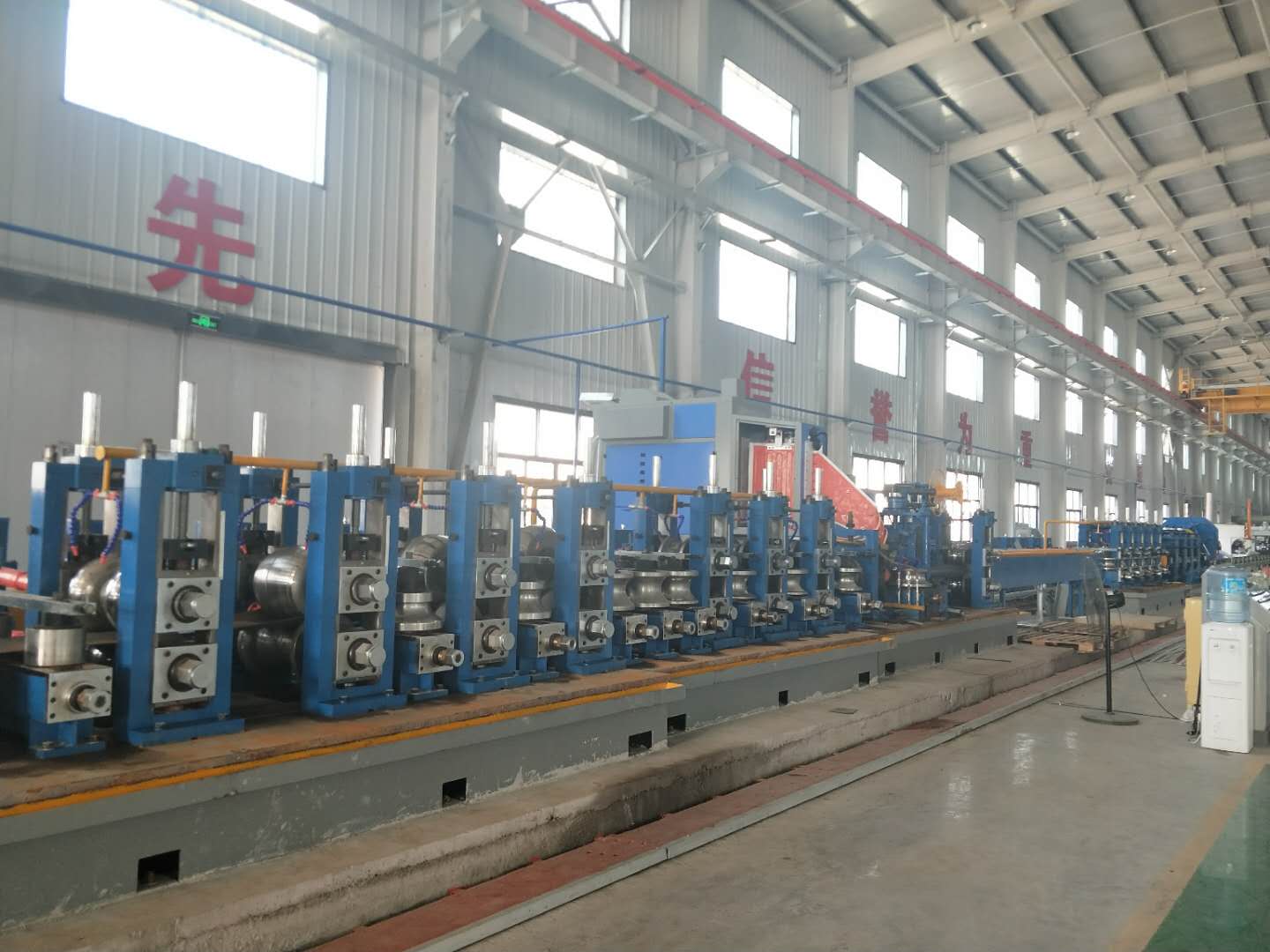

1) ERW165 welded tube mill is one model of ERW tube mills .The ERW165 welded tube mill utilizes HF induction welding to manufacture Ø76mm---Ø165mm steel tube and 60X60mm---130x130mm square tube and 40X80mm-100X600mm rectangular tube with the thickness 2.0--6.0mm .
2）ERW165 welded tube mill has conventional forming technology, it is ideal for round tube , square&rectangular tube.best control on the tube dimension tolerance and length accuracy.
3）For the square and rectangular tube production . We can provide 2 forming processes as option .

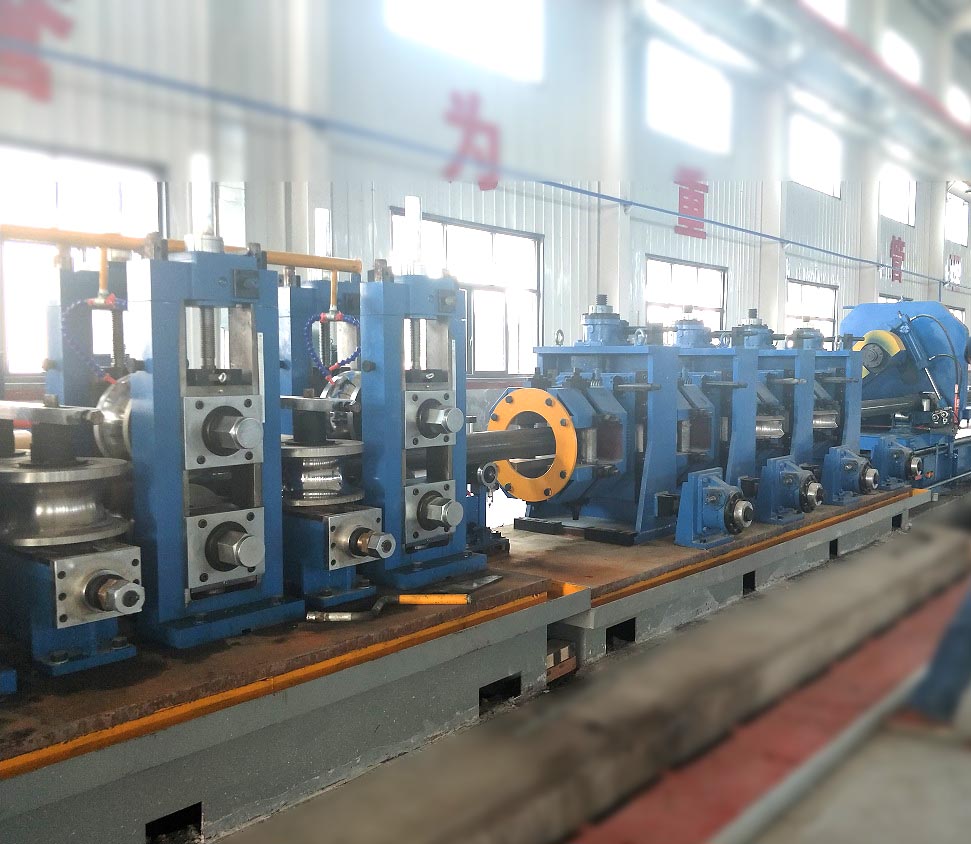

Option1: the steel strip is shaped into round tube by forming machine .after HF welding , the round tube is shaped into square or rectangular tube by sizing machine ,and then the square or rectangular tube is straightened y 2 -Turkey head .
Option2: The steel strip is shaped into round tube by forming machine .after HF welding , the round tube is shaped into square or rectangular tube by 3-Turkey head ,and then the square or rectangular tube is straightened by the 4th -Turkey head .
One of the forming processes can be determined as per the quantity of square&rectangular and round tube .so that the roller investment can be saved maximum.
4）ERW165welded tube mill is a tailored-made steel tube production line . We are able to design and manufacture the tube mill as per customer’s requirement ,Such as ,the steel tube diameter and thickness , raw material type and raw material yield strength ,specification of tube mill and your floor space dimension,power supply condition .
Before making quotation ,we will send the customer a request form to customer’s specific requirement. So that we make quotation that completely meet customer’s demand.
5）We are not only a provider of tube mill, but also a provider of solution for the problem that arise in the course of Pre-sales, in sales, and after-sales
Raw Material | The Material | HR/CR carbon steel . |
Width | 240mm-520mm | |
Thickness: | 2.0mm-6.0mm | |
Coil ID | φ580- φ700mm | |
Coil OD | Max :φ1800mm | |
Coil Weight | 5.0-6.0Tons | |
Steel tube specification | Round Pipe | 76mm-165mm |
Square & Rectangular Pipe | 60*60mm-130*130mm | |
40*80mm-100*160mm | ||
Wall Thickness | 2.0-6.0mm(Round Pipe) | |
2.0-5.0mm(Square&rectangular tube) | ||
Speed of tube mill | Max.50m/min | |
Pipe Length | 3m-12m,can be defined by the customer | |
The required floor space | 85mX7m(L*W) | |
Total power | 950KW | |

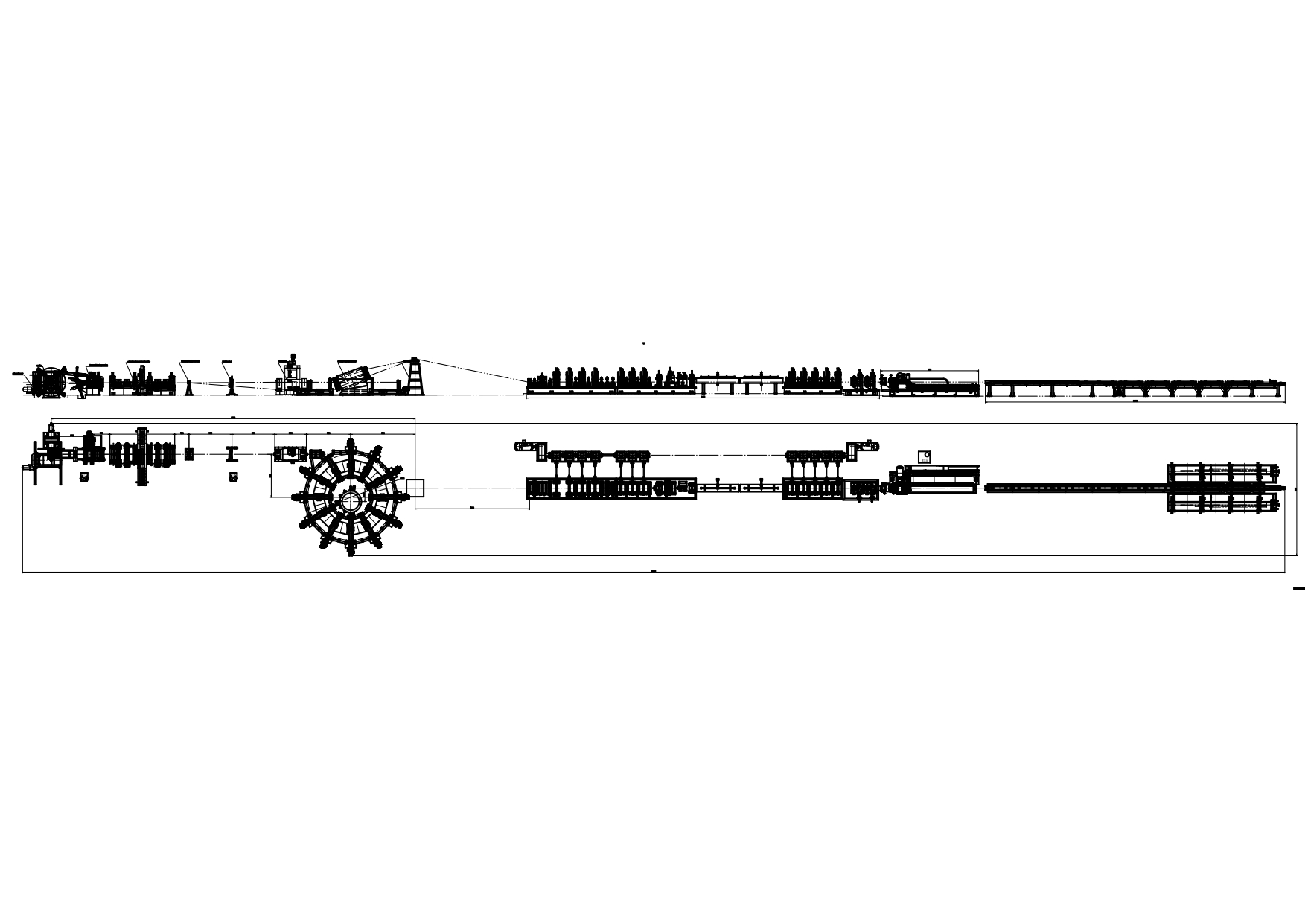

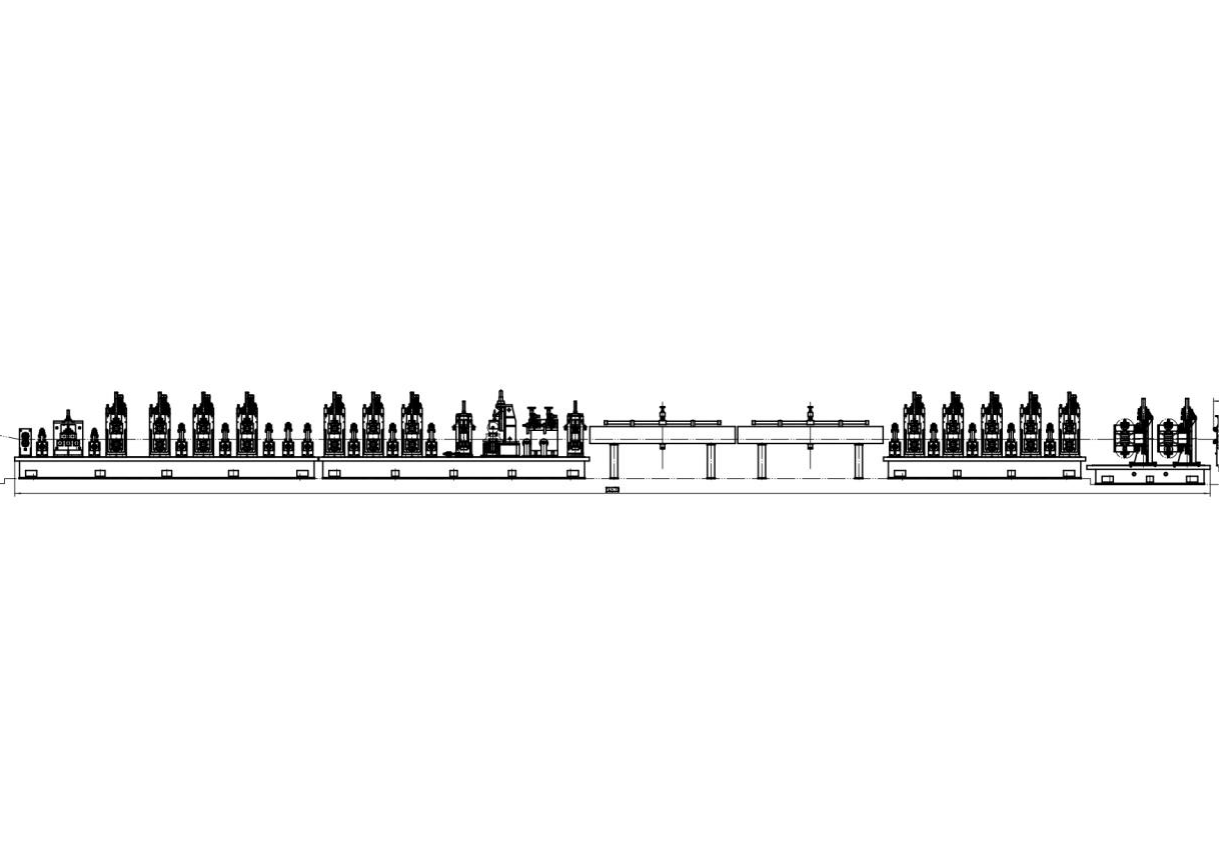

Coil loading car→ single mandrel uncoiler→Pinch and leveling machine →Shear and end welding machine( strip joiner) →floor type accumulator→forming machine→HF welding →Water Cooling→Sizing machine→ Flying Saw → tube end chamfering machine → hydrostatic testing machine →Run out table→ automatic stacking machine → Warehouse Storage.

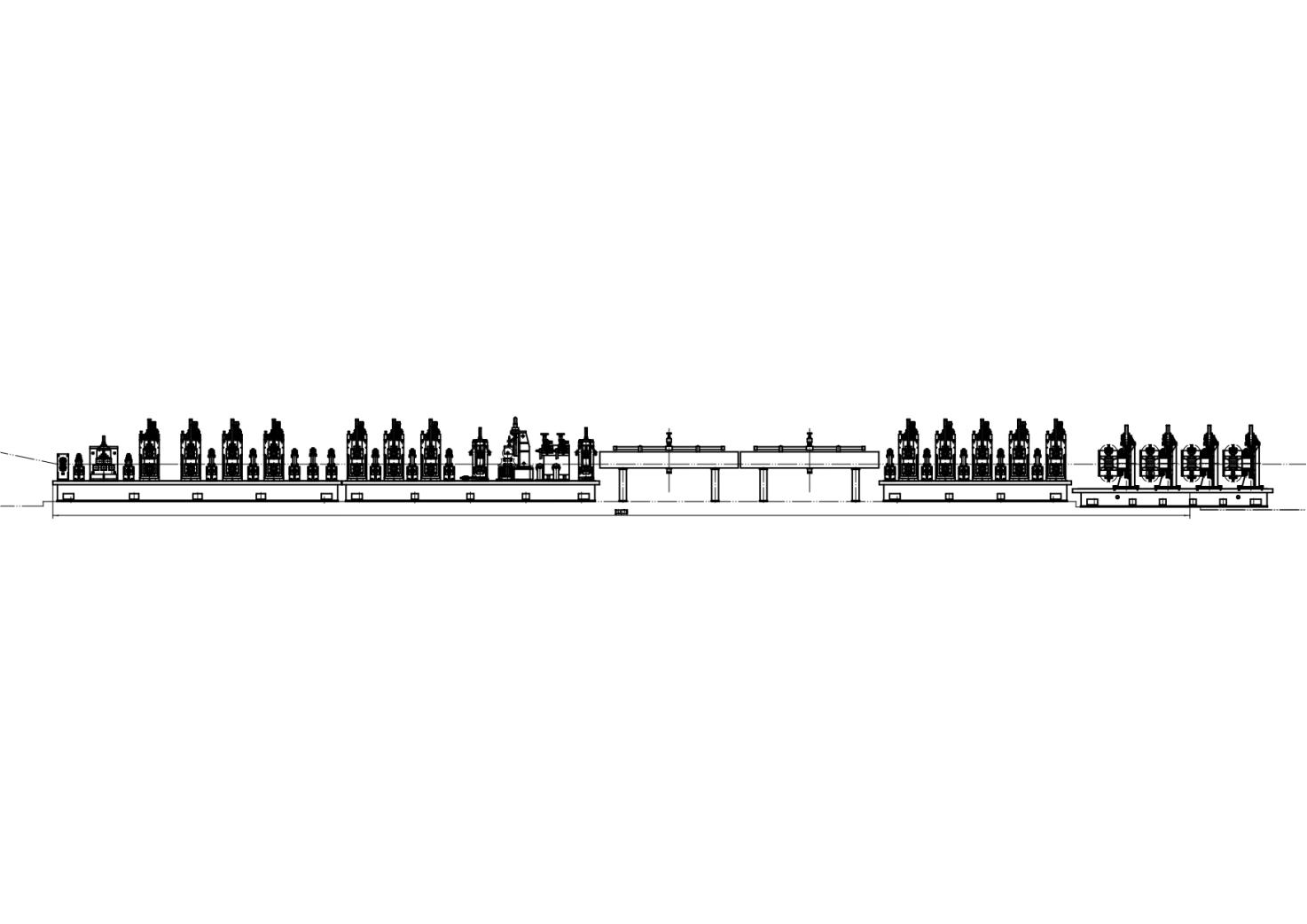

1. We have gradually abandoned the idea of designing only two-dimensional drawings. We now design not only two-dimensional drawings but also 3D drawings.
With advanced 3D modeling and drafting software, allows us to analyze functionality of each part and make any improvements as needed.We can promptly detect design errors
2. 31 sets of CNC vertical machining center and 6 sets of CNC horizontal machining center,3 sets CNC boring machine , 2 set of heavy duty CNC gantry milling machine have been in use. This lead to tight accuracy and high productivity, In this way, errors caused by match machining can be avoided, Meanwhile, the delivery time can be ensured.
3. With the advanced COPPRA software , Out engineer not only calculate the roller weight but also design roller at high efficiency.
