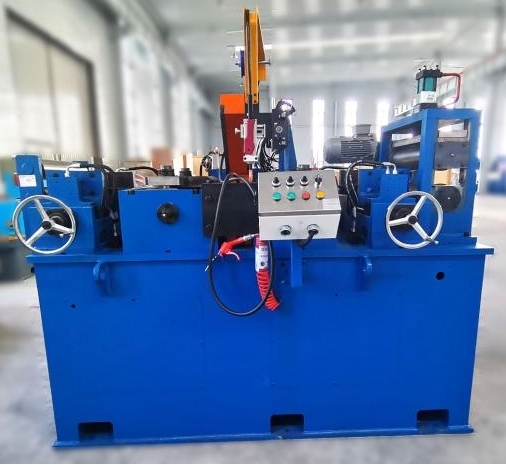

In modern tube milling operations, the quality of the coolant directly influences tool life, surface finish of the welded pipe, and overall process stability. As milling speeds increase and tolerances tighten, the role of industrial coolant filtration systems becomes critical. These systems remove ferrous and non-ferrous particulates, tramp oil, and bacteria from the coolant, ensuring that the fluid maintains its thermal and lubricating properties. For plant managers and process engineers, understanding the technical specifications and integration requirements of coolant filtration systems is essential to reduce downtime, lower consumable costs, and meet stringent quality standards. This article provides a data-driven examination of filtration technologies, common contamination sources, and how advanced coolant filtration systems can be seamlessly incorporated into high-speed tube mill lines, with a focus on solutions compatible with SANSO equipment.
Coolant in a tube mill environment is exposed to a variety of contaminants that degrade its performance. Identifying these contaminants is the first step in designing an effective filtration strategy.
Chip and Swarf: During the milling of strip edges and subsequent sizing operations, metal chips (both ferrous and, in the case of stainless steel, non-ferrous) are generated. These particles range from large settleable solids to fine micron-sized dust.
Abrasive Dust: From scale and surface preparation, these hard particles accelerate pump wear and can settle in machine ways.
Weld Spatter: In high-frequency welding, small metal droplets can enter the coolant stream, causing clogging in nozzles and heat exchangers.
Tramp Oil: Leakage from hydraulic systems and way lubrication introduces oils that reduce coolant heat transfer and promote bacterial growth.
Bacteria and Fungi: Warm, stagnant coolant with tramp oil becomes a breeding ground for microorganisms, leading to foul odors, corrosion, and health risks.
The consequences of inadequate filtration are measurable: a study in tube manufacturing plants showed that coolant with particle counts above 25 mg/L can reduce tool life by up to 40% and increase surface roughness (Ra) by 0.4 µm on finished pipes. Effective coolant filtration systems target contaminant levels below 10 mg/L to maintain optimal performance.
Selecting the right coolant filtration systems depends on the type of contaminants, flow rate requirements, and the specific milling operations involved. Below are the primary technologies employed in modern tube mills.
Gravity bed filters use a disposable or renewable filter media (paper or fabric) to trap particles as coolant flows through by gravity. They are effective for general machining and milling applications with moderate chip loads. Typical filtration ratings range from 20 to 50 µm. For tube mills producing carbon steel pipes, a gravity filter with automatic media indexing can handle swarf loads of 200–500 kg per shift.
For ferrous particle removal, magnetic separators are highly efficient. They use high-intensity permanent magnets to extract iron and steel fines from the coolant stream. When integrated upstream of a finer filter, they reduce the load on disposable media, extending its life by 30–50%. In tube mills processing predominantly carbon steel, magnetic separators are a cost-effective first-stage solution.
Hydrocyclones use centrifugal force to separate solids from liquids without moving parts. They are ideal for removing particles down to 10–15 µm at high flow rates (up to 500 L/min). Their compact design allows them to be placed directly on the machine tool or at a central sump. However, they are less effective for particles with specific gravity close to that of the coolant, such as aluminum or plastic fines.
For applications demanding very fine filtration (below 10 µm), vacuum filters draw coolant through a disposable paper or fabric using a vacuum pump. The differential pressure triggers automatic media indexing. These coolant filtration systems are common in tube mills producing precision tubes for automotive or hydraulic applications, where surface finish is critical.
As a polishing step, cartridge or bag filters with ratings of 1–5 µm can be used in a bypass loop to remove residual fines. They require regular element replacement and are often used in combination with other primary filtration methods.
The efficiency of any coolant filtration systems is maximized when it is designed as an integral part of the tube mill line rather than an afterthought. SANSO tube mills are engineered with modular coolant management interfaces, allowing for straightforward integration of advanced filtration technologies.
In a multi-stand tube mill, two approaches exist: a centralized system serving all stations, or individual units for each milling head. Centralized coolant filtration systems reduce equipment footprint and simplify maintenance, but they require careful sizing to handle peak flow from all stations simultaneously. SANSO offers guidance on flow calculations and manifold design to ensure that pressure drops do not affect individual milling operations. For example, a typical tube mill with four milling stands may require a central filter capable of processing 800–1200 L/min with a solids holding capacity of at least 500 kg.
Modern coolant filtration systems integrate with automated drag conveyors or sludge carts to remove collected solids without stopping production. This is particularly important in high-volume mills where manual cleaning would cause unacceptable downtime. SANSO lines can be equipped with sensors that monitor sludge levels and trigger conveyor operation, ensuring continuous operation.
Beyond particle removal, effective filtration systems often include heat exchangers to maintain coolant temperature (typically 20–25°C) and tramp oil skimmers. By keeping the coolant clean and cool, the fluid’s service life can be extended from weeks to months, reducing disposal costs and environmental impact. Data from installations using SANSO-integrated filtration show a 300% increase in coolant life compared to mills using simple settling tanks.
Choosing among coolant filtration systems requires a systematic evaluation of process parameters and economic factors.
Flow Rate and Pressure: The system must handle the combined flow of all coolant nozzles without starving the pumps. Typical milling operations require 40–80 L/min per spindle at 4–8 bar.
Particle Size Distribution: Analyze swarf samples to determine the range of particle sizes. If 90% of particles are larger than 50 µm, a gravity filter may suffice; if sub-10 µm fines are present, a multi-stage approach (magnetic + paper bed) is advisable.
Coolant Type: Water-soluble synthetics have different filtration characteristics than neat oils. Some filter media are incompatible with certain chemistries.
Space Constraints: In retrofit applications, compact hydrocyclones or modular paper bed filters may be preferred over large central tanks.
While initial capital cost is important, the TCO of coolant filtration systems includes media consumption, energy usage, maintenance labor, and disposal costs. For example, a system using disposable paper may have lower upfront cost but higher recurring media expense compared to a self-cleaning centrifuge. A TCO model for a medium-sized tube mill (operating 6,000 hours/year) indicated that investing in a high-efficiency vacuum filter with automatic indexing reduced annual operating costs by 22% compared to a standard gravity unit, primarily due to reduced tool wear and less frequent coolant changes.
Even well-designed coolant filtration systems can encounter issues. Here are common problems and how to address them.
Cause: High concentration of fine particles or tramp oil clogging the filter media.
Solution: Install a magnetic separator or hydrocyclone upstream to remove larger fines. Use coalescers or skimmers to reduce tramp oil below 1%.
Cause: Stagnant zones in the tank or insufficient aeration.
Solution: Ensure tank design eliminates dead spots, incorporate agitation, and use periodic biocide dosing. Systems with continuous filtration and oil removal naturally inhibit bacterial proliferation.
Cause: Partially clogged filter media causing pump cavitation or uneven flow.
Solution: Implement differential pressure sensors to trigger media advance before pressure drops. In SANSO-integrated lines, the control system can adjust pump speed to maintain constant pressure during indexing.
The next generation of coolant filtration systems leverages Industry 4.0 technologies to optimize performance. IoT-enabled sensors monitor particle counts, pH, and conductivity in real time, automatically adjusting filtration parameters and alerting maintenance to impending issues. Cloud-based analytics can compare filter performance across multiple mills, identifying best practices. Additionally, there is a growing emphasis on zero-liquid discharge systems that recover clean water and concentrate waste for disposal, aligning with sustainability goals. SANSO is actively developing interfaces for such smart filtration units, ensuring that tube mills remain competitive in a resource-constrained future.
Q1: What is the ideal filtration rating for coolant in tube milling?
A1: For most carbon and stainless steel tube mills, a filtration rating of 20–30 µm is sufficient to protect tools and ensure surface finish. For precision applications (e.g., hydraulic cylinders), a finer rating of 5–10 µm is recommended, achievable with multi-stage coolant filtration systems.
Q2: Can coolant filtration systems handle both ferrous and non-ferrous chips?
A2: Yes, but the technology mix may differ. Magnetic separators are excellent for ferrous materials but ineffective for aluminum or brass. A combination of magnetic separation followed by a paper bed filter or centrifuge is commonly used for mixed-metal mills.
Q3: How often should filter media be replaced in a paper bed filter?
A3: Replacement frequency depends on chip load. In a typical tube mill with 400 hours of operation per month, media indexing may occur every 8–12 hours. Automatic indexing systems minimize labor and ensure consistent filtration.
Q4: What maintenance is required for a hydrocyclone-based filtration system?
A4: Hydrocyclones have no moving parts, so maintenance is minimal. Periodic inspection for wear in the cone and vortex finder is recommended, typically every 6–12 months. The underflow collection tank should be cleaned regularly to prevent solids buildup.
Q5: How does integrating filtration with the tube mill control system improve operations?
A5: Integration allows for real-time monitoring of coolant pressure, flow, and filter status. When a filter approaches saturation, the mill control can slow feed rates to prevent tool damage, or schedule an automatic cleaning cycle. SANSO mills offer such integrated control options, enhancing overall equipment effectiveness (OEE).
Q6: Are there environmentally friendly coolant filtration options?
A6: Yes. Systems that extend coolant life reduce disposal volumes. Additionally, filters using renewable media (e.g., cellulose) and energy-efficient pumps contribute to sustainability. Some advanced coolant filtration systems now incorporate membrane filtration to recover clean water for reuse, minimizing waste.
For tube mill operators aiming to maximize productivity and component quality, investing in the right coolant filtration systems is not optional—it is a strategic decision. By understanding the technical nuances and leveraging the integration capabilities of mills like those from SANSO, manufacturers can achieve significant competitive advantages through reduced costs and superior product consistency.
