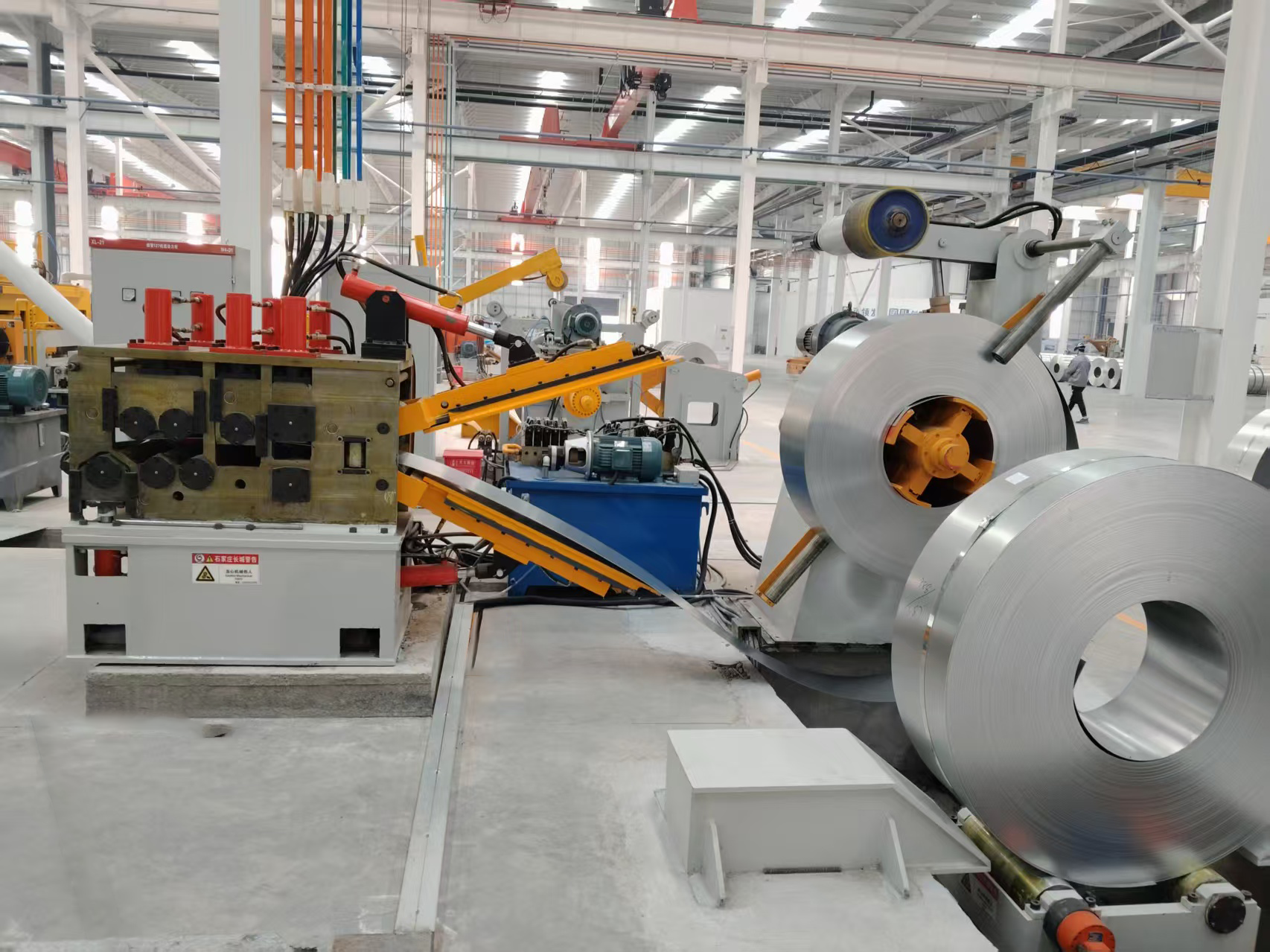

The un coiler is the starting point of any tube mill, roll forming line, or slitting operation. It must pay off steel strip from a master coil under controlled tension while preventing edge damage, telescoping, or sudden uncoiling. Poor un coiler performance leads to strip breaks, mill downtime, and rejected tubing. Based on data from over 350 industrial installations worldwide, this guide presents eight engineering parameters that separate reliable un coiler designs from chronic problem sources. SANSO engineers heavy-duty un coiler systems for coil weights from 2 to 30 tons, serving tube producers, roll formers, and stamping operations globally.
An un coiler (also called decoiler or pay-off reel) supports and rotates a steel coil, allowing strip to feed into a straightener, feeder, or directly into the forming mill. Key functions include:
Expanding mandrel segments to grip the coil inner diameter (ID) without slippage.
Providing adjustable braking (mechanical, electric, or hydraulic) to maintain consistent back tension.
Accommodating various coil widths, IDs, and ODs through movable side guides and expansion range.
Damping vibration to prevent coil chatter marks on the strip surface.
Inadequate coil handling equipment manifests as edge burrs, strip wander, or runaway coils. Modern lines integrate the un coiler with a hydraulic coil car, peel-off table, and straightener. SANSO designs each un coiler with a service factor of 1.5× rated coil weight to handle peak loads during emergency stops.
The mandrel must expand to fit standard coil IDs: 508 mm (20″), 610 mm (24″), or 760 mm (30″). Expansion mechanisms for an un coiler include:
Hydraulic cylinder + linkage: Provides 10–15% expansion range, grip force up to 80 kN. Slower cycle but suitable for heavy coils.
Air bladder with segmented pads: Fast expansion (2–3 seconds) for frequent coil changes, lower grip force for light-gauge strip.
Manual screw expansion: Low cost but impractical above 5 tons.
Grip margin calculation: (mandrel radial force × coefficient of friction) / (coil weight × acceleration). A safety factor of 1.8 is recommended. SANSO uses heat-treated alloy steel segments with serrated faces (0.8 mm tooth height) to increase friction without damaging the coil ID. For high-strength steel (>600 MPa tensile), specify increased hydraulic pressure.
Back tension directly affects strip alignment and mill performance. Three braking methods for un coiler systems:
Mechanical disc brake: Low cost but pad wear requires weekly adjustment. Tension varies with coil diameter (torque constant, but strip tension = torque / coil radius).
Electric regenerative braking (AC motor + VFD): Precise tension control (±5% setpoint). Energy regeneration saves 15–25% power. Preferred for lines >60 m/min.
Hydraulic brake with proportional valve: Smooth tension for heavy coils (15–30 tons), requires hydraulic power unit.
Tension requirement: 5–15% of strip yield strength for most forming operations. A closed-loop tension control system uses a dancer arm or load cell to modulate braking force. SANSO integrates encoder feedback from the pinch roll to maintain constant specific tension (N/mm²) as coil diameter decreases from 1500 mm to 500 mm.
Heavy coils (10–30 tons) require a hydraulic coil car to load onto the un coiler mandrel. Key specifications:
Car lift stroke: 200–600 mm to align coil ID with mandrel center.
Traverse speed: 5–10 m/min for safe positioning.
V-rollers with polyurethane coating to protect coil OD.
Poor integration damages mandrel segments or strips coil edges. Modern un coiler systems include a photoelectric sensor to detect coil ID position and auto-center the car. For manual lines, a swing-type un coiler with hydraulic tilting allows floor loading without a car. SANSO offers both configurations, with cycle times from 60 seconds (manual) to 25 seconds (fully automatic).
Strip wandering causes edge marks and misalignment in subsequent rollers. An un coiler must include adjustable side guides to center the coil before expansion. Two designs:
Manual screw-adjusted guides: Low cost but require operator intervention for each coil width change.
Hydraulic auto-centering guides: Use ultrasonic sensors to detect coil edges and move guides simultaneously. Reduces setup time by 80%.
Guide plate material: hardened steel (HRC 50–55) with replaceable wear strips. Clearance between guide and coil edge should be 1–2 mm for heavy gauge, 0.5 mm for thin strip (<1 mm). SANSO's active centering system reduces edge damage by 70% compared to fixed guides. For slit strip (narrow width), a pair of edge roll guides is recommended instead of plates.
Rotating an unbalanced coil generates vibration that transmits to the strip and mill. A rigid un coiler base and proper foundation are required. Design points:
Baseplate mass: at least 3× coil weight to absorb inertia.
Concrete foundation depth: 600–1200 mm depending on soil conditions.
Vibration isolators (spring or rubber) under the un coiler feet for lines above 100 m/min.
Field data shows that un coiler vibration exceeding 2 mm/s RMS causes strip chatter marks. SANSO performs modal analysis on each un coiler design to identify resonant frequencies and adds stiffening ribs. For high-speed tube mills, a dancer roll between un coiler and straightener decouples vibration.

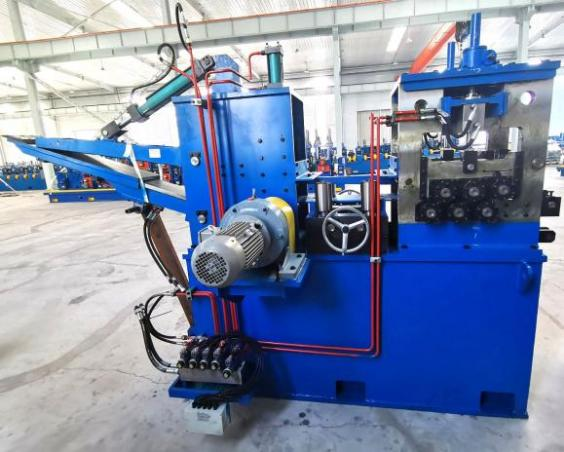

The first wrap of a steel coil is often damaged or out-of-round. A peel-off table (with a hydraulic or pneumatic knife) lifts the outer wrap and guides it into the pinch rolls. Features of an effective peel-off system for an un coiler:
Knife angle adjustable between 15–30°.
Roller conveyor with rubber coating to prevent slip.
Photoelectric edge detection to stop the peel-off knife before damaging usable strip.
Without a peel-off table, operators manually hook the coil end – a safety hazard for heavy coils. SANSO's peel-off table integrates with the un coiler control, automating the feeding sequence.
An un coiler presents pinch points and rotating mass hazards. Mandatory safety features:
Hinged guards with interlocks that disconnect drive power when opened.
Emergency stop buttons (red mushroom) within reach of operator.
Fail-safe brake: spring-applied, air-released. If air pressure drops, brake engages automatically.
Overspeed sensor that triggers emergency stop if rotation exceeds 120% of set speed.
Warning lights and audible alarm during mandrel expansion/contraction.
SANSO un coiler systems comply with OSHA 1910.212, ANSI B11.18, and CE standards. A risk assessment report is provided with each machine.
Industrial un coiler equipment operates in a dusty environment with steel scale. Design for maintainability:
Centralized grease points for bearings (mandrel support, car wheels).
Wear indicators on brake pads and mandrel segments.
Quick-release covers for mandrel segment access.
Expected component lifespans: mandrel segments (5 years under normal use), disc brake pads (6 months for 24/7 operation), main bearings (10 years), hydraulic hoses (3 years). SANSO provides a detailed maintenance schedule including lubrication intervals (every 200 operating hours for mandrel segments) and torque values for fasteners. Remote condition monitoring (vibration, temperature) is available as an option.
Common problems encountered with un coiler systems and how SANSO resolves them:
Pain point: Coil ID damage from mandrel slippage – Solution: Serrated segments with 0.8 mm tooth height; hydraulic pressure maintained by a check valve even during power loss; pressure gauge visible to operator.
Pain point: Strip edge curl caused by misaligned guides – Solution: Dual linear guide rails for side guide movement; digital position readout with memory for 20 coil widths.
Pain point: Sudden uncoiling (runaway) during brake failure – Solution: Fail-safe spring-applied brake; over-speed sensor triggers emergency stop within 0.2 seconds; mechanical anti-reverse pawl as backup.
Pain point: Long coil changeover time (15+ minutes) – Solution: Quick-release mandrel segment covers; hydraulic side guides with preset width memory; powered coil car with joystick. Changeover under 3 minutes for same ID coils.
SANSO provides on-site audits and retrofit kits for existing un coilers, including brake upgrades, auto-centering guides, and peel-off tables.
ERW tube mill (16″ OD pipe): Requires an un coiler handling 30-ton coils, 6–12 mm thickness. SANSO supplied a double-mandrel turret un coiler that allows loading a second coil while the first runs, eliminating downtime for coil change. Payback: 8 months.
Roll forming line for solar racking: Light-gauge galvanized strip (1.5–3 mm) needs a precision un coiler with edge guidance to ±0.5 mm. SANSO's servo-driven electric brake maintains constant tension as coil diameter reduces from 1500 mm to 500 mm, preventing edge wave.
Slitting line for narrow strip: A reel un coiler with low inertia and rapid stop capability prevents coil overrun when slitting 50 mm strips. SANSO integrates a disc brake with proportional valve and a dancer roll for smooth deceleration.
For each application, SANSO provides a customized un coiler including base frame, mandrel, brake, side guides, coil car, and control panel.
Q1: What is the difference between an un coiler and a
decoiler?
A1: The terms are used interchangeably. Both refer to
equipment that unwinds coil stock. However, some industries use "un coiler" for
heavy-duty, large-coil applications (tube mills) and "decoiler" for
lighter-gauge stamping lines. SANSO's un coiler range
covers both.
Q2: What is the maximum coil weight an un coiler can
handle?
A2: Standard SANSO un coiler models
handle 2 to 30 tons. Custom designs up to 50 tons are available for line pipe
mills. The limiting factors are mandrel shaft diameter (120–350 mm) and bearing
capacity. Provide coil OD, ID, width, and material grade for a sizing
calculation.
Q3: How do I choose between a single mandrel and a double mandrel
(turret) un coiler?
A3: Single mandrel requires line stop during
coil change. Double mandrel (turret) has two rotating mandrels – one unwinds
while the other is loaded offline. Changeover time is 30–60 seconds without
stopping the mill. Turret un coilers cost 70–100% more but pay back in
high-volume lines with 2+ coil changes per hour. SANSO manufactures both
types.
Q4: What safety features are mandatory on an un
coiler?
A4: Mandatory: guard interlocks (disconnect drive if
opened), emergency stop button within reach, anti-runaway brake
(spring-applied), and warning lights during rotation. For coils above 10 tons, a
coil tilter with safety cage is recommended. SANSO un coilers comply with OSHA
and CE. Request the safety data sheet.
Q5: How do I prevent coil edge damage during
uncoiling?
A5: Use side guides with nylon or polyurethane liners
(not steel). Set guide clearance to coil edge at 1 mm for thin strip. Install a
peel-off table with rubber-coated pinch rolls to separate the coil outer wrap
without scraping. For high-strength steel, a hydraulic peel-off knife is
required. SANSO's anti-damage kit reduces scrap by 40%.
Q6: What is the typical installation time for a new un
coiler?
A6: For a 10-ton capacity unit with coil car, installation
takes 3–5 days including foundation drilling, alignment, electrical connection,
and commissioning. SANSO provides a turnkey team. Retrofit of an existing un
coiler (brake or guide upgrade) takes 8–16 hours. Plan for a 1-day mill
shutdown.
Q7: Can I retrofit an existing manual un coiler with automatic
centering?
A7: Yes. SANSO offers a retrofit kit including hydraulic
cylinders, linear position sensors, and a PLC controller. The system reads coil
width from an ultrasonic sensor and moves both side guides simultaneously.
Retrofit cost is $8,000–12,000, reducing setup time from 5 minutes to 30
seconds. Payback period <6 months for lines with >10 coil changes per
day.
Selecting the right un coiler requires coil specifications (weight, width, ID, material strength), line speed, and changeover frequency. SANSO provides free engineering consultations, foundation drawings, and 3D models for integration. Send your coil parameters and mill layout to receive a detailed proposal including braking torque calculation, mandrel expansion range, cycle time estimate, and energy cost analysis. All inquiries receive a response within 48 hours.
