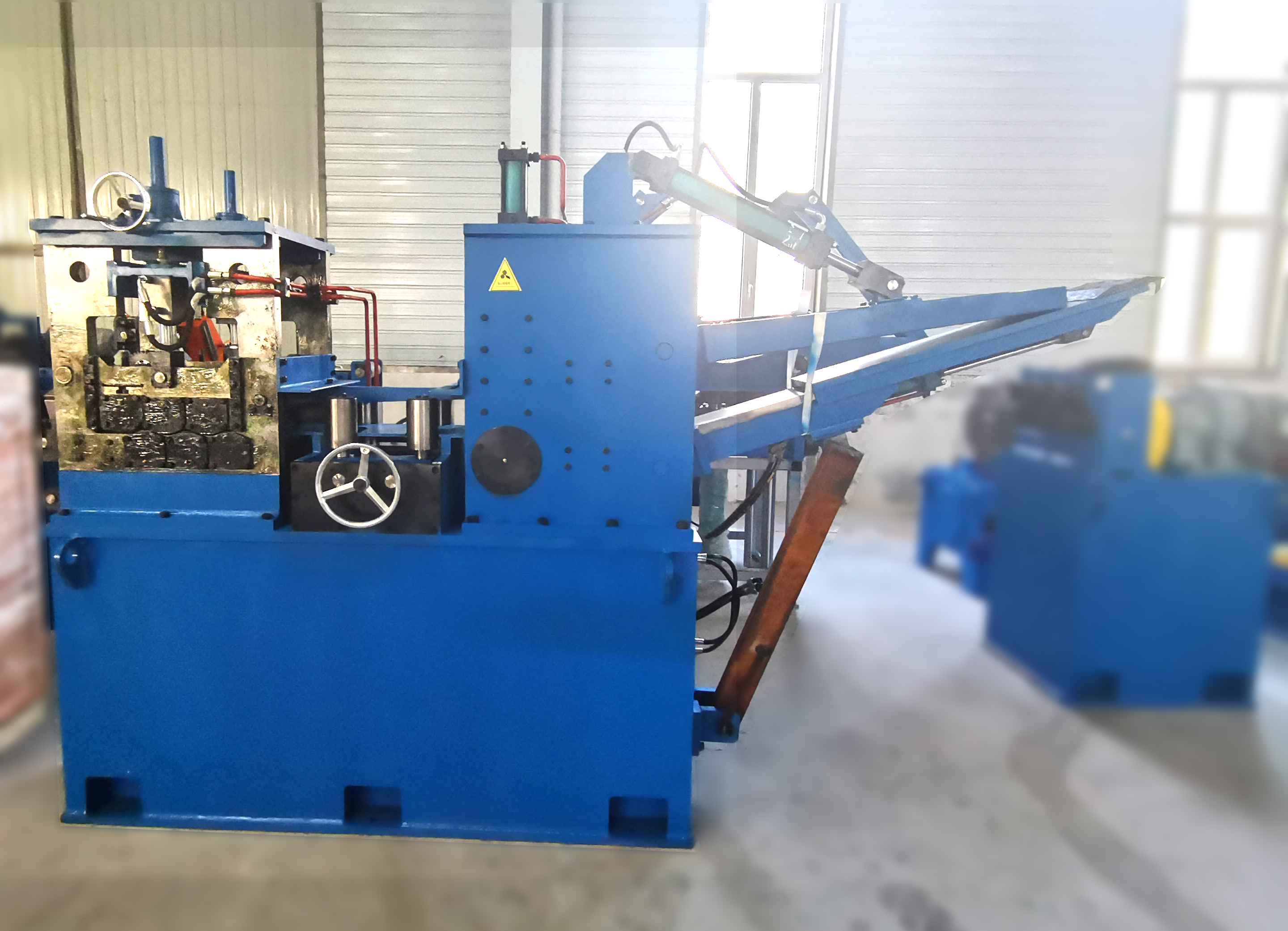

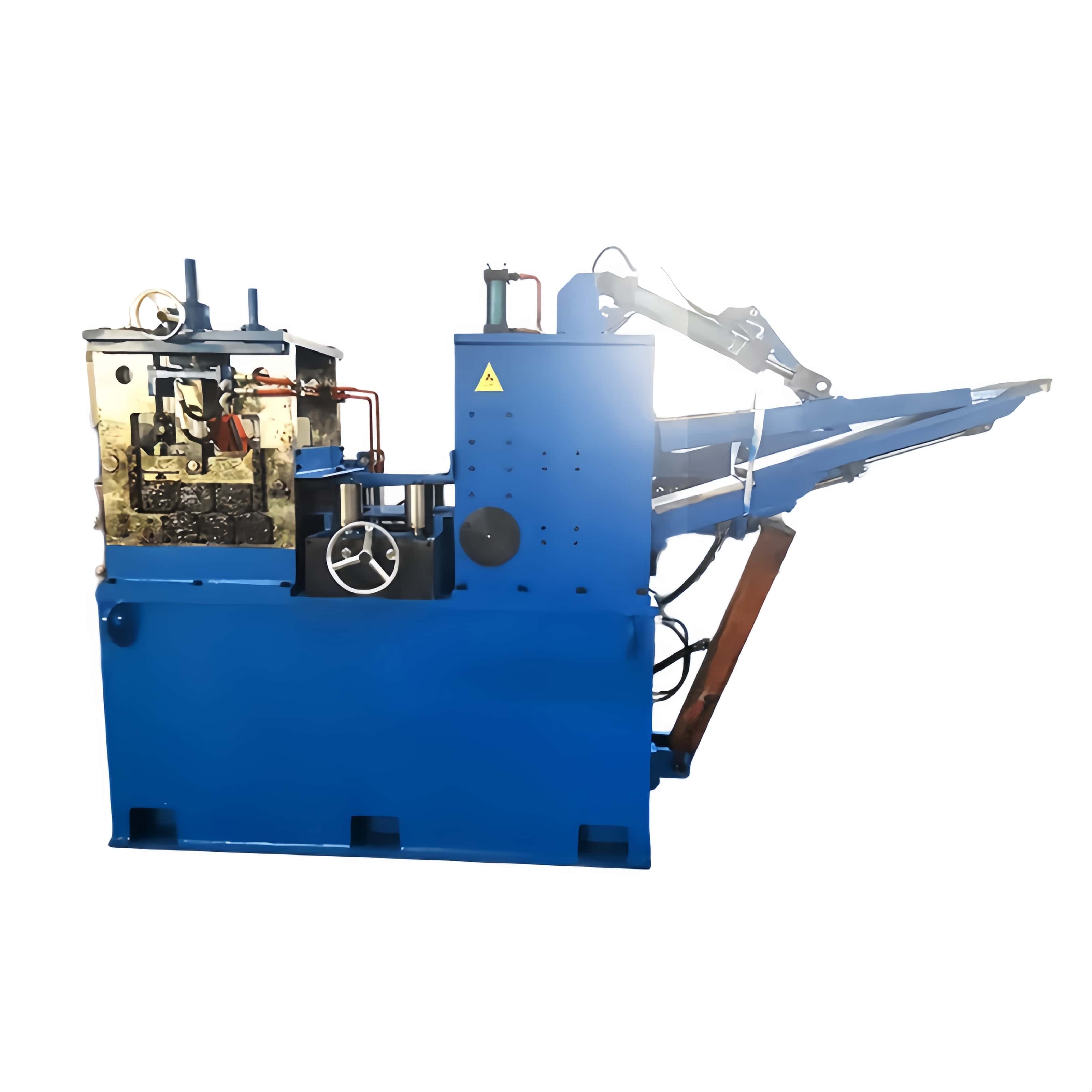

We design the pinch and leveling machine ( it also called strip flattener)to handle /flatten the strip with over 4mm thickness and strip width from 238mm to 1915mm .
The steel strip head with over 4mm thickness is typically bend, we have to straighten/level/flatten it by the pinch and leveling machine ,this result in shearing and alighning and welding of strips in shearing and welding machine easily and smoothly.
1)Electro-welded steel support base
2)2-pinch roller:
（ 1 upper idle roller,1 lower driven roller, hydraulic ystem for descent of upper roller, the 2 rollers through quenching treatment)
3)5-leveling roller :
( 2-upper driven roller,3-lower driven roller, . 1 hydraulic lifting system for upper rolls release,the 5 rollers through queching treatment.)
4)Side guide assembly
5)Driven system(motor and reducer)
6)Hydraulic system(hydraulic station, hydraulic cylinder and hydraulic valves and fitting)
7)Console
The vertical movement of top pinching roller and top leveling roller are controlled by hydraulic cylinder.
The pinching roller is driven by a AC motor with reducer.
The 5-leveling roller are driven by a AC motor with reducer.
Moreover,The decoiler straightener typically is fitted with the peeler table ,which can guide the new strip head into the pinching roller.
The up/down movement of upper peeler table is driven by hydraulic cylinder .
The expansion of lower peeler table by hydraulic cylinder
1)Easy maintenance and low maintenance cost
2)Minimized energy consumption .
3)Simple operation,just operate the button of the console to control the machine .
4)No malfunction
