butt welding machine

The general description of manual shear welding machine

Together with the accumulator, it permits to change coil and joint it with the

already working strip maintaining constant the speed of the tube mill.

The shear and end welding machine only process the strip less than 4mm .

The strip is sheared by hydraulic manually, and the strip hear and end is welded together by TIG automatically.

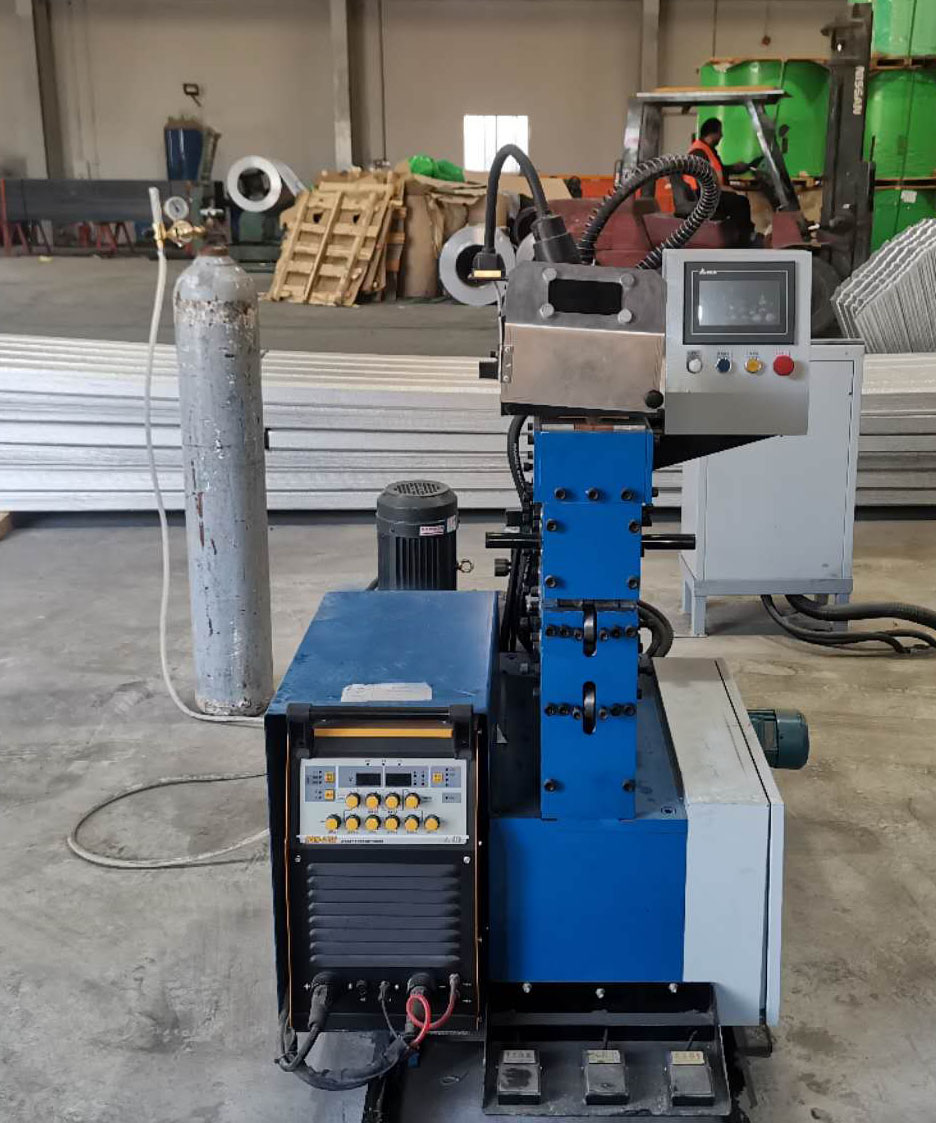

The shearing and end welding machine composed by

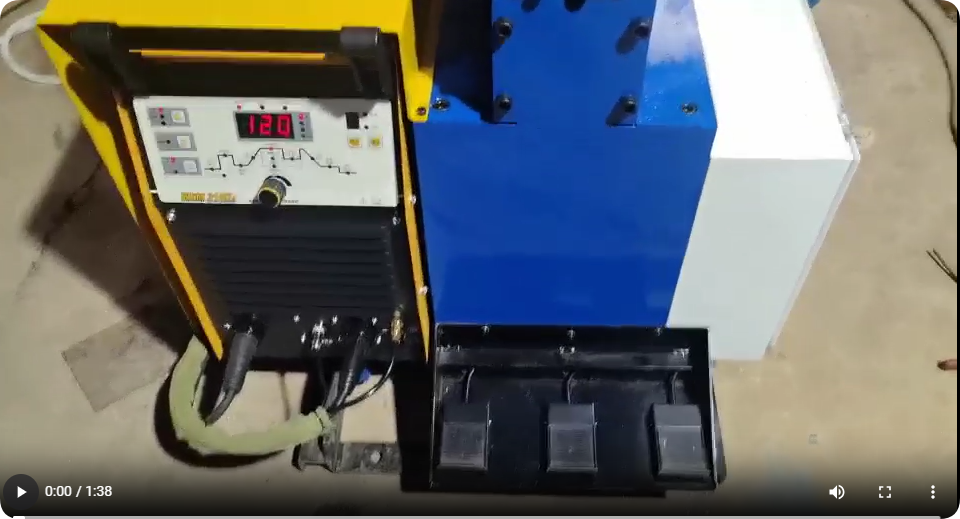

1）The TIG welder

2）The hydraulic station

3）The shearing unit

4）The welding unit

5）The electrical control unit

6）The touch screen

7）The guide rail

8）The geared motor
