The cage accumulator can storage 700m-1000 length strip, which can maintain the tube mill consistent running during changing steel coil and joining the strip heard and end together.

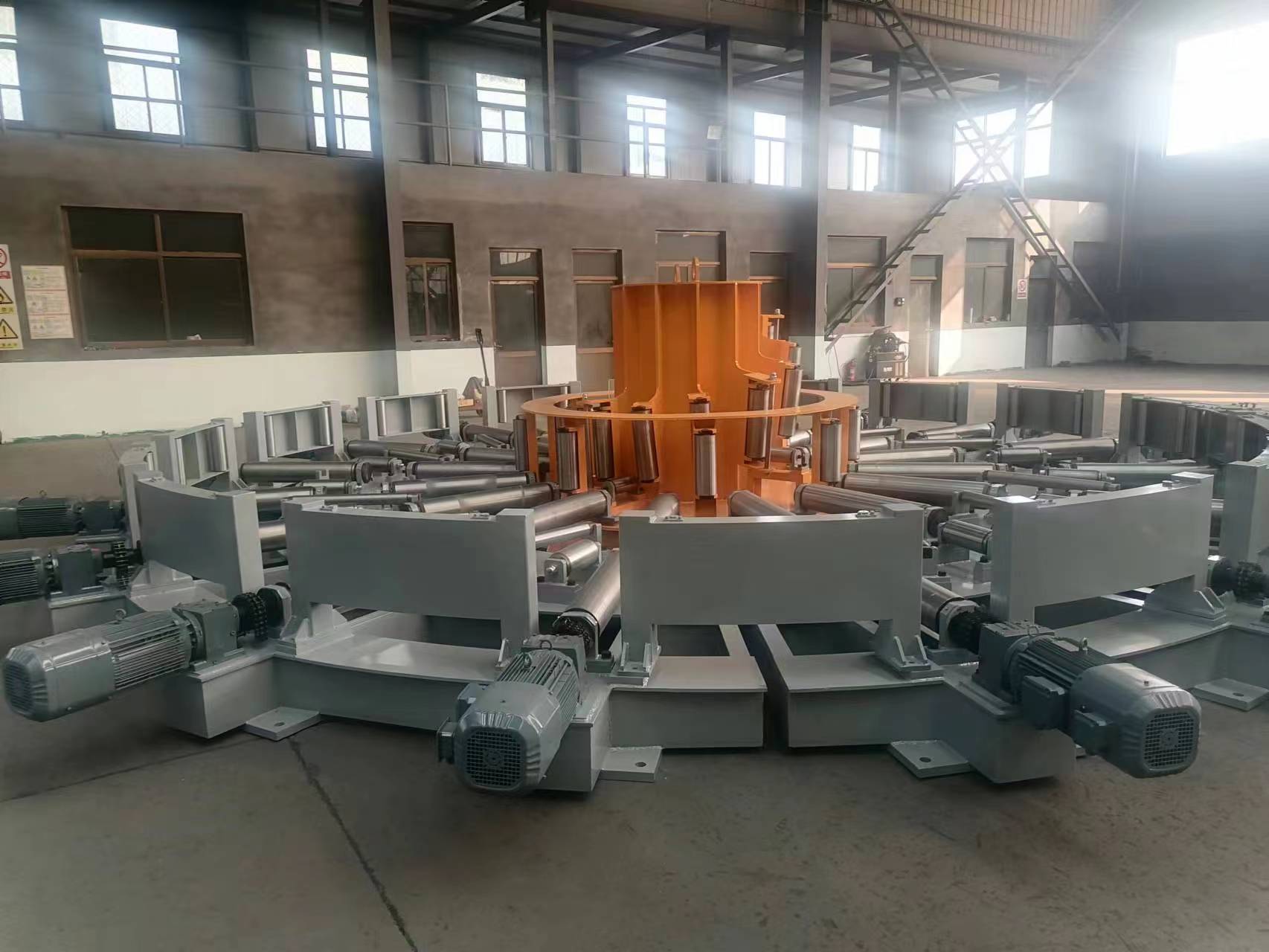

The floor type accumulator is work with the ERW114---ERW325 tube mill .which handle the strip width 160mm--600mm with thickness 1.5---12mm
1)The horizontal support bracket
2)The twisting bracket
3)Pneumatic brake
4)Roller feeding unit
5)Accumulator assembly
6)High support bracket
| The model of floor type accumulator | ||||
| S. NO | MODEL | STEEL STRIP WIDTH RANGE (MM) | STEEL STRIP THICKNESS RANGE (MM) | MAX. STORAGE (M) |
| 1 | HT6000 | 100-400 | 2.5-4 | 2000 |
| 2 | HT7000 | 200-520 | 2.5-6 | 3000 |
| 3 | HT8000 | 300-800 | 2.5-8 | 5000 |
| 4 | HT10000 | 400-900 | 3.0-10 | 6500 |
| 5 | HT12000 | 500-1050 | 3.0-12 | 9600 |
| 6 | HT14000 | 600-1200 | 3.0-14 | 12000 |
| 7 | HT16000 | 750-1600 | 5.0-16 | 10000 |
